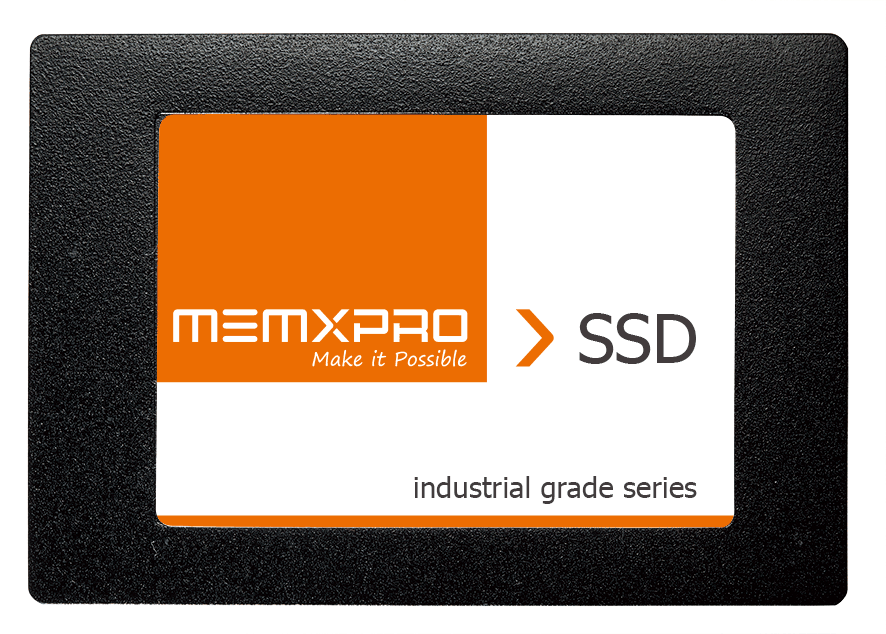

2.5" SSD E231

2.5" SSD E231 is a SATA III 6Gb/s high-capacity MLC drive with single board slim design for better transmission and signal stability. The products are targeted at server and transportation market applications required mutiple-terabyte storage capacities.

FEATURES

  • Industrial SATA III 2.5" SSD
  • MLC eMMC, up to 4TB capacity
  • Extended/wide temp. solutions
  • Built-in ECC and OCP/OVP
  • NCQ/TRIM/SMART support
  • mSMART storage device monitoring
Interface SATA III
Form Factor 2.5" SSD (SFF-8201)
Flash Type MLC eMMC　
Max. Channel 8
Density 1TB~4TB
Sequential R/W (MB/sec, max.) 516/425
Operating Temperature -25°C~+85°C/-40°C~+85°C
Max. Power Consumption 6.6W (5V x 1320mA)
Dimension (LxWxH/mm) 100x69.85x7
Operating Voltage 5V±5%
Storage Temperature -55°C~+95°C
External DRAM Buffer N/A
Thermal Sensor ✓
DEVSLP Mode N/A
ATA Security ✓
S.M.A.R.T. ✓
TRIM ✓
Vibration 20G (7~2KHz)
Shock Resistance 1500G@0.5ms
MTBF >3 million hours
