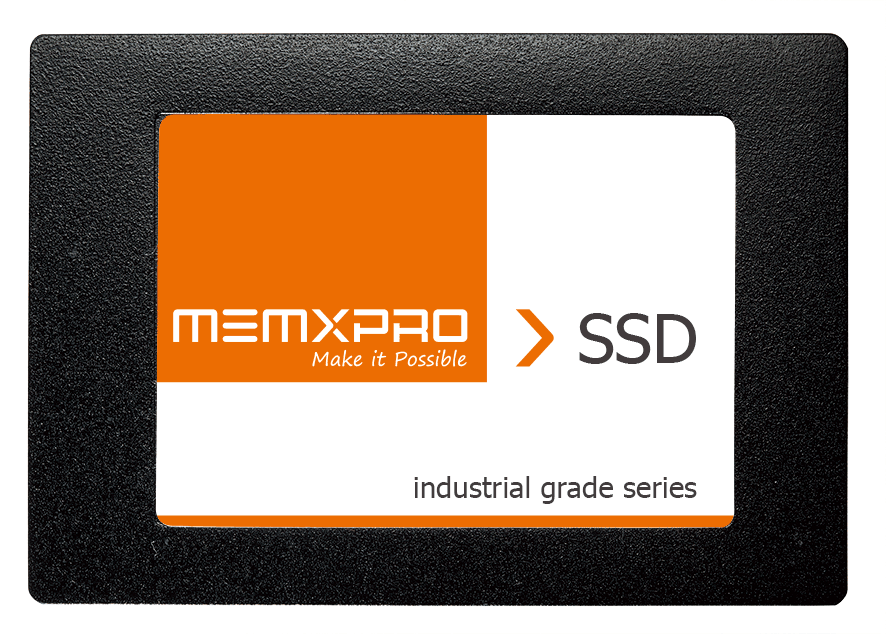

2.5" SSD PB31

2.5" SSD PB31 is a SATA III 6Gb/s StrongMLC solid state drive delivering high IOPS and enhanced endurance. 2.5" SSD PB31's outstanding performance and proven reliability is ideal for factory and machine automation, server, medical, gaming, retail, industrial and embedded applications.

FEATURES

  • Industrial SATA III 2.5" SSD
  • High IOPS and superior performance
  • StrongMLC mode, up to 256GB capacity
  • Commercial/extended/wide temp. solutions
  • Built-in ECC and OCP/OVP
  • NCQ/TRIM/SMART support
  • mSMART storage device monitoring
Interface SATA III
Form Factor 2.5" SSD (SFF-8201)
Flash Type StrongMLC
Max. Channel 4
Density 32GB~256GB
Sequential R/W (MB/sec, max.) 552/439
Operating Temperature 0°C~+70°C/-25°C~+85°C/-40°C~+85°C
Max. Power Consumption 6W (5Vx1.2A)
Dimension (LxWxH/mm) 100x69.85x6.9
Operating Voltage 5V±5%
Storage Temperature -55°C~+95°C
External DRAM Buffer ✓
Thermal Sensor ✓
DEVSLP Mode <5mW
ATA Security ✓
S.M.A.R.T. ✓
TRIM ✓
Vibration 20G (7~2KHz)
Shock Resistance 1500G@0.5ms
MTBF >3 million hours
