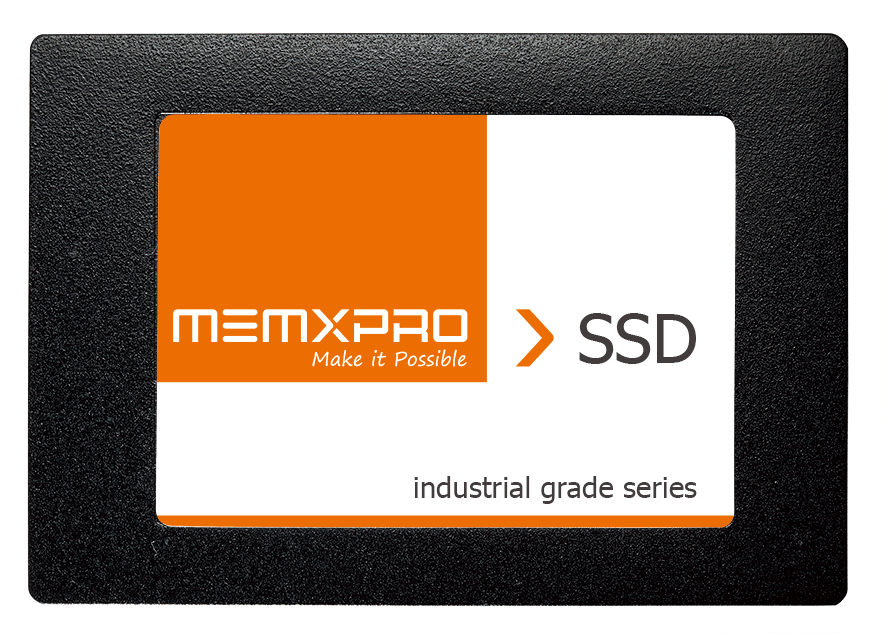

2.5" SSD PT30

MEMXPRO 2.5” SSD PT30 is high-performance SATA III 6Gb/s solid state disk with 10K P/E cycle 3D TLC NAND to boost system performance and enhances the endurance compared to 2D NAND SSDs. The PT30 series supports intelligent SLC Caching and DRAM cache buffer, which accelerates the sequential and 4K random read/write speeds. Featuring LDPC ECC and RAID Engine technologies, PT30 series ensures data integrity and the safety of data transmission. Wide temperature -40°C to +85°C solution is available for embedded applications, industrial equipment, and edge devices operating in challenging environments.

FEATURES

  • Industrial SATA III 2.5" SSD, DRAM inside
  • Industrial Micron 3D TLC, up to 10K P/E Cycles
  • Read/write speeds of up to 550/510 MB/s
  • Up to 2TB capacity
  • Support commercial/extended/wide temp.
  • Built-in LDPC ECC RAID Engine, and OCP/OVP
  • mSMART storage device monitoring
Interface SATA III
Form Factor 2.5" SSD (SFF-8201)
Flash Type 3D TLC (Original Micron B17A)
Max. Channel 4
Density 128GB~2TB
Sequential R/W (MB/sec, max.) 550/510
Operating Temperature 0°C~+70°C/-40°C~+85°C
Max. Power Consumption 6W (5Vx1200mA)
Dimension (LxWxH/mm) 100x69.85x6.9
Operating Voltage 5V±5%
Storage Temperature -55°C~+95°C
External DRAM Buffer ✓
Thermal Sensor ✓
DEVSLP Mode ✓
Vibration 20G (7~2KHz)
Shock Resistance 1500G@0.5ms
MTBF >3 million hours
