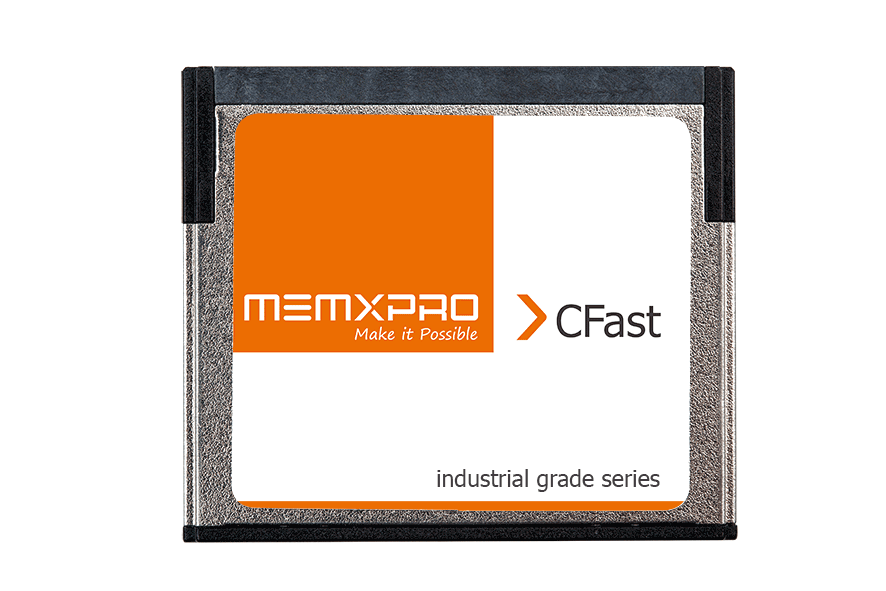

CFast EB31

CFast EM31 is a SATA III 6Gb/s StrongMLC flash card for industrial applications. With its small footprint, moderate capacity and rugged case, the industrial CFast EB31 series is an ideal fit for embedded small hard drive replacement and boot drive in industrial computing platforms.

FEATURES

  • Industrial SATA III CFast
  • Compliant with CFast2.0 standard
  • StrongMLC mode with 20K+ P/E cycles
  • Commercial/extended/wide temp. solutions
  • Built-in ECC
  • NCQ/TRIM/SMART support
  • mSMART storage device monitoring
Interface SATA III
Form Factor CF Type I
Flash Type StrongMLC
Max. Channel 4
Density 8GB~32GB
Sequential R/W (MB/sec, max.) 509/157
Operating Temperature 0°C~+70°C/-25°C~+85°C/-40°C~+85°C
Max. Power Consumption 3.6W (3.3Vx1090mA)
Dimension (LxWxH/mm) 36.4x42.8x3.6
Operating Voltage 3.3V±5%, 5V±5%
Storage Temperature -55°C~+95°C
External DRAM Buffer N/A
Thermal Sensor ✓
DEVSLP Mode <5mW
ATA Security ✓
S.M.A.R.T. ✓
TRIM ✓
Vibration 20G
Shock Resistance 1000G@1ms
MTBF 3 million hours
