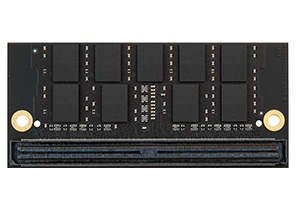

DDR3/DDR3L XRDIMM


FEATURES

  • Data rates in 1066/1333/1600/1866 MT/s.
  • JEDEC standard 1.5V±0.075V & 1.35V (1.28V~1.45V) power supply.
  • ECC function support and built-in thermal sensor.
  • Available in standard, extended, and industrial grade temperature ranges.
  • Lead-free, RoHS compliant.
DIMM Type XRDIMM
Data Rate / Frequency 1066/1333/1600/1866 MT/s
Density 1GB/2GB/4GB/8GB/16GB
Voltage 1.5V/1.35V
Pin count 240pin
Width 64-Bit/72-Bit
PCB Height 37.30mm
Operating Temperature 0°C~+85°C/-25°C~+85°C/-40°C~+85°C
Vibration 20G (7~2KHz)
