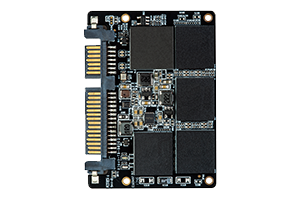

Half Slim SATA E231

Half Slim SATA E231 is a SATA III 6Gb/s MLC eMMC flash module. With a standard 22-pin (7+15) SATA interface, it allows system designers to leverage standard SATA cabling or host connections for embedded applications with faster booting and smaller footprint.

FEATURES

  • SATA III, compliant with JEDEC MO-297
  • MLC, up to 1TB capacity
  • Extended/wide temp. solutions
  • Built-in ECC engine and OCP/OVP
  • NCQ/TRIM/SMART support
  • mSMART storage device monitoring
Interface SATA III
Form Factor Half Slim SATA (MO297)
Flash Type MLC eMMC
Max. Channel 8
Density 512GB~1TB
Sequential R/W (MB/sec, max.) 532/407
Operating Temperature -25°C~+85°C/-40°C~+85°C
Max. Power Consumption 5.5W (5Vx1100mA)
Dimensions (LxWxH/mm) 39.8x54x4
Operating Voltage 5V±5%
Storage Temperature -55°C~+95°C
External DRAM Buffer N/A
Thermal Sensor ✓
DEVSLP Mode N/A
ATA Security ✓
S.M.A.R.T. ✓
TRIM ✓
Vibration 20G (7~2K Hz)
Shock Resistance 1500G@0.5ms
MTBF >3 million hours
