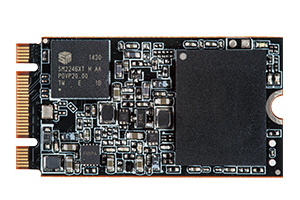

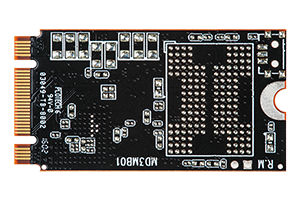

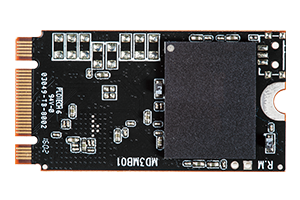

M.2 2242 SATA EB31

M.2 2242 SATA EB31 is a SATA III 6Gb/s StongMLC flash module. Delivering exceptional read/write speed and enhanced endurance in a small footprint, the M.2 2242 SATA EB31 is the ideal storage companion for embedded computing boards, portable devices or automotive applications.

FEATURES

  • M.2 (NGFF) standard of 22mm wide, 42mm long
  • StrongMLC, DRAM-less, up to 64GB capacity
  • Commercial/extended/wide temp. solutions
  • Built-in ECC and OCP/OVP
  • NCQ/TRIM/SMART support
  • mSMART storage device monitoring
Interface SATA III
Form Factor 2.5" SSD (SFF-8201)
Flash Type StrongMLC
Max. Channel 4
Density 8GB~128GB
Sequential R/W (MB/sec, max.) 514/421
Operating Temperature 0°C~+70°C/-25°C~+85°C/-40°C~+85°C
Max. Power Consumption 0.825W (3.3Vx250mA)
Dimensions (LxWxH/mm) 100x69.85x6.8
Operating Voltage 3.3V±5%
Storage Temperature -55°C~+95°C
External DRAM Buffer N/A
Thermal Sensor ✓
DEVSLP Mode <5mW
ATA Security ✓
S.M.A.R.T. ✓
TRIM ✓
Vibration 20G (7~2K Hz)
Shock Resistance 1500G@0.5ms
MTBF >3 million hours
