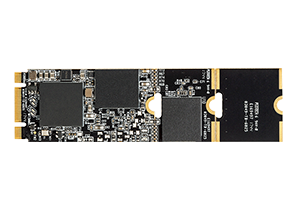

M.2 2280 SATA E231

M.2 2280 SATA E231 is a SATA III 6Gb/s MLC eMMC flash module. Delivering exceptional read/write speed in a small footprint, the M.2 2242 SATA EM31 is the ideal storage companion or embedded computing boards, portable devices or automotive applications.

FEATURES

  • M.2 (NGFF) standard of 22mm wide, 80mm long
  • MLC eMMC , up to 512GB capacity
  • Extended/wide temp. solutions
  • Built-in ECC and OCP/OVP
  • NCQ/TRIM/SMART support
  • mSMART storage device monitoring
Interface SATA III
Form Factor M.2 SATA (2280/D2)
Flash Type MLC eMMC　
Max. Channel 4
Density 128GB~512GB
Sequential R/W (MB/sec, max.) 270/246
Operating Temperature -25°C~+85°C/-40°C~+85°C
Max. Power Consumption 2.64W (3.3V x 800mA)
Dimensions (LxWxH/mm) 22x80x3.5
Operating Voltage 3.3V±5%
Storage Temperature -55°C~+95°C
External DRAM Buffer N/A
Thermal Sensor ✓
DEVSLP Mode N/A
ATA Security ✓
S.M.A.R.T. ✓
TRIM ✓
Vibration 20G (7~2K Hz)
Shock Resistance 1500G@0.5ms
MTBF >3 million hours
