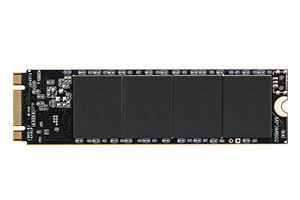

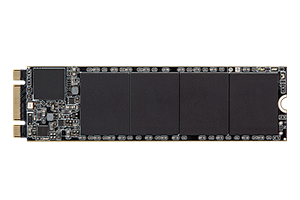

M.2 2280 SATA EM31

M.2 2280 SATA EM31 is a SATA III 6Gb/s MLC flash module. The M.2 2280 SATA EM31 supports Ultrabook SSD upgrades and applications for industrial systems and mobile devices.

FEATURES

  • M.2 (NGFF) standard of 22mm wide, 80mm long
  • MLC, DRAM-less, up to 256GB capacity
  • Commercial/extended/wide temp. solutions
  • Built-in ECC and OCP/OVP
  • NCQ/TRIM/SMART support
  • mSMART storage device monitoring
Interface SATA III
Form Factor M.2 SATA (2280/S2/D2)
Flash Type MLC
Max. Channel 4
Density 32GB~256GB
Sequential R/W (MB/sec, max.) 505/331
Operating Temperature 0°C~+70°C/-25°C~+85°C/-40°C~+85°C
Max. Power Consumption 3.3W (3.3Vx1.0A)
Dimensions (LxWxH/mm) 22x80x2.15 / 22x80x3.5
Operating Voltage 3.3V±5%
Storage Temperature -55°C~+95°C
External DRAM Buffer N/A
Thermal Sensor ✓
DEVSLP Mode <5mW
ATA Security ✓
S.M.A.R.T. ✓
TRIM ✓
Vibration 20G (7~2K Hz)
Shock Resistance 1500G@0.5ms
MTBF >3 million hours
