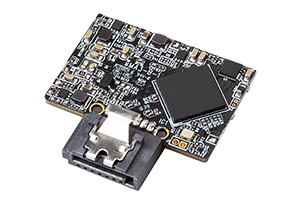

SATA Module EB31

SATA Module EB31 is an ultra-compact half-size mSATA SATA III 6Gb/s StrongMLC flash module. It is designed as a space-constraint and low power SSD to spinning hard disk drives in embedded applications.

FEATURES

  • 7-pin SATA connector design
  • StrongMLC, DRAM-less, up to 64GB capacity

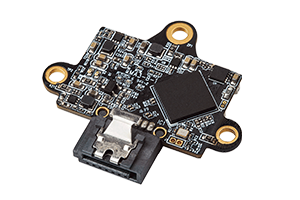

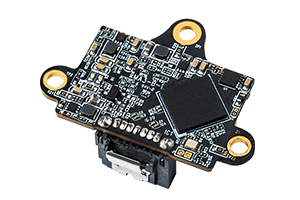

  • Small form factor with 3 or without screw holes
  • Commercial/extended/wide temp. solutions
  • Built-in ECC and OCP/OVP
  • NCQ/TRIM/SMART support
  • mSMART storage device monitoring
Interface SATA III
Form Factor Vertical, 3 holes Horizontal, 3 holes Vertical, no hole Horizontal, no hole
Flash Type StrongMLC
Max. Channel 2
Density 16GB~64GB
Sequential R/W (MB/sec, max.) 348 /101
Operating Temperature 0°C~+70°C/-25°C~+85°C/-40°C~+85°C
Max. Power Consumption 1.25W (5Vx250mA)
Dimension (LxWxH/mm) 36.5x40.4x8.0 36.5x40.4x12.5 29.3x30.0x8.0 24.5x30.0x12.5
Operating Voltage 5V±5%
Storage Temperature -55°C~+95°C
External DRAM Buffer N/A
Thermal Sensor ✓
DEVSLP Mode N/A
ATA Security ✓
S.M.A.R.T. ✓
TRIM ✓
Vibration 20G (7~2K Hz)
Shock Resistance 1500G@0.5ms
MTBF 3 million hours
