SATA Module EM31(Write Protect)

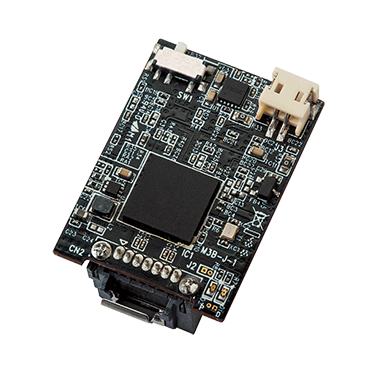

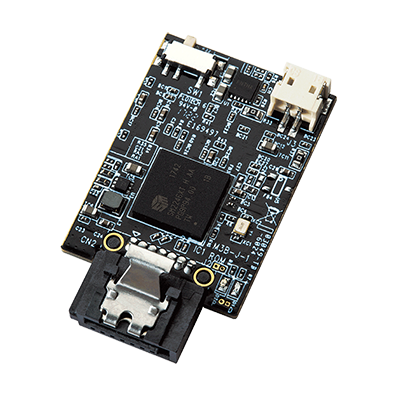

SATA Module EM31 is a 7-pin SATA III 6Gb/s MLC miniaturized flash module with hardware Write Protect function. Easy plug & play installation for fast access, its small footprint is ideal for space-limited embedded systems and mobile applications.
FEATURES
- 7-pin 90-degree and 180-degree SATA connector designs.
- SATA lll interface running at up to 6Gb/s.
- MLC version in standard, extended, and industrial grade temperature ranges.

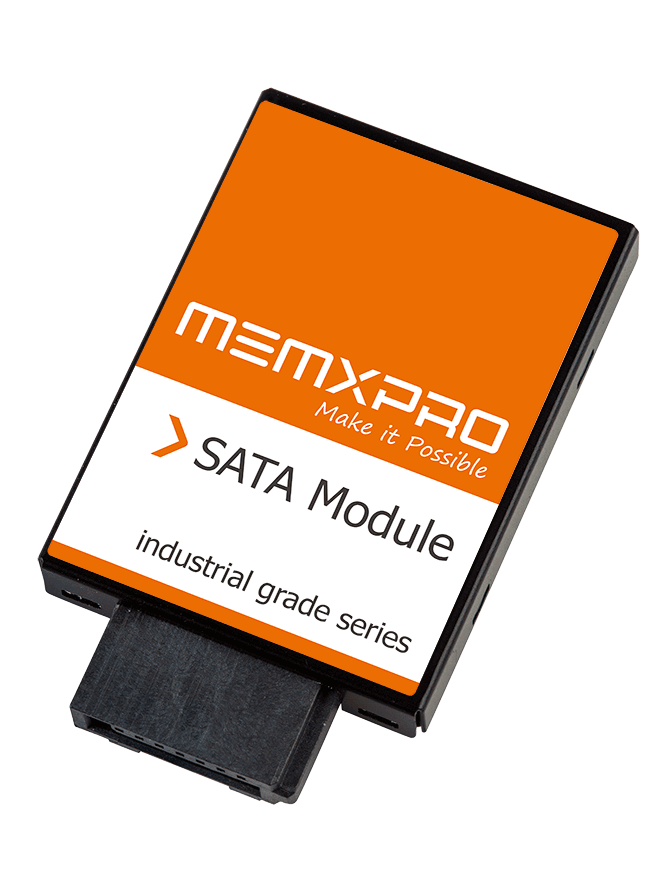

- Small form factor with housing or no housing design.
- Global wear leveling, bad block management with built-in ECC, and optional security features.
- SMARTPro device monitoring tool or SDK library support.
Interface | SATA III | ||
Form Factor | Vertical, housing | Vertical, no housing | Horizontal, no housing |
Flash Type | MLC | ||
Max. Channel | 2 | ||
Density | 16GB~64GB | ||
Sequential R/W (MB/sec, max.) | 348 /101 | ||
Operating Temperature | 0°C~+70°C/-25°C~+85°C/-40°C~+85°C | ||
Max. Power Consumption | 1.25W (5Vx250mA) | ||
Dimension (LxWxH/mm) | 40.36x24.4x8.0 | 39.6x23.0x7.5 | 34.8x23.0x12.5 |
Operating Voltage | 5V±5% | ||
Storage Temperature | -55°C~+95°C | ||
External DRAM Buffer | N/A | ||
Thermal Sensor | ✓ | ||
DEVSLP Mode | N/A | ||
ATA Security | ✓ | ||
S.M.A.R.T. | ✓ | ||
TRIM | ✓ | ||
Vibration | 20G (7~2K Hz) | ||
Shock Resistance | 1500G@0.5ms | ||
MTBF | 3 million hours |
File Type | Documentation | Size | Format |
---|---|---|---|
Datasheet | MEMXPRO_DataSheet_SATA_Module_EM31_V1.0.pdf | 521KB |
