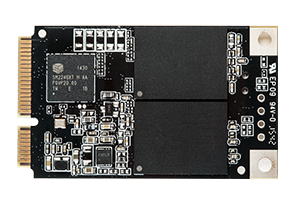

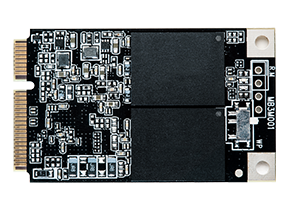

mSATA EB31

mSATA EB31 series is a SATA III StrongMLC flash module with extend endurance. mSATA products can be configured as boot drives or data storage devices, providing excellent performance and efficiency with faster read/write speeds.

FEATURES

  • SATA III, compliant with JEDEC MO-300A
  • StrongMLC, DRAM-less, up to 128GB capacity
  • Commercial/extended/wide temp. solutions
  • Built-in ECC and OCP/OVP
  • NCQ/TRIM/SMART support
  • mSMART storage device monitoring
Interface SATA III
Form Factor mSATA (MO300A)
Flash Type StrongMLC
Max. Channel 4
Density 8GB~128GB
Sequential R/W (MB/sec, max.) 514/421
Operating Temperature 0°C~+70°C/-25°C~+85°C/-40°C~+85°C
Max. Power Consumption 2.9W (3.3Vx880mA)
Dimension (LxWxH/mm) 50.8x29.85x3.75
Operating Voltage 3.3V±5%
Storage Temperature -55°C~+95°C
External DRAM Buffer N/A
Thermal Sensor ✓
DEVSLP Mode < 5mW
ATA Security ✓
S.M.A.R.T. ✓
TRIM ✓
Vibration 20G (7~2KHz)
Shock Resistance 1500G@0.5ms
MTBF >3 million hours
