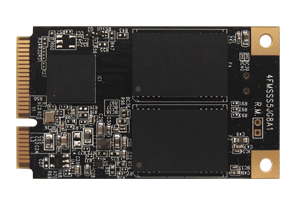

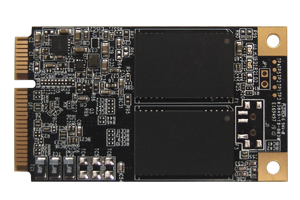

mSATA ET30

MEMXPRO mSATA ET30 is budget friendly SATA III 6Gb/s embedded flash storage with 10K P/E cycle 3D TLC NAND to boost system performance and enhances the endurance compared to 2D NAND SSDs. The ET30 series features LDPC ECC and RAID Engine technologies, ensuring data integrity and the safety of data transmission. With 3D TLC NAND’s projected continued improvements in scalability, it is a new era of density, performance and cost benefits for embedded and industrial applications.

FEATURES

  • SATA III, compliant with JEDEC MO-300A
  • Industrial Micron B17A 3D TLC, up to 10K P/E Cycles
  • Read/write speeds of up to 560/515 MB/s
  • DRAM-less, up to 1TB capacity
  • Support commercial temperature
  • Built-in LDPC, ECC RAID engine, and OCP/OVP
  • mSMART storage device monitoring
Interface SATA III
Form Factor mSATA (MO300A)
Controller SMI SM2258XT
Flash Type 3D TLC(Original Micron B17A flash chip)
P/E Cycle 10000
Max. Channel 4
Density 64GB~1TB
Sequential R/W (MB/sec, max.) 560/515
Operating Temperature 0°C~+70°C/-25°C~+85°C/-40°C~+85°C
Max. Power Consumption 3W (3.3Vx9000mA)
Dimension (LxWxH/mm) 50.8x29.85x3.75
Operating Voltage 3.3V±5%
Storage Temperature -55°C~+95°C
External DRAM Buffer N/A
Thermal Sensor ✓
DEVSLP Mode Optional
Vibration 20G (7~2KHz)
Shock Resistance 1500G@0.5ms
MTBF >3 million hours
