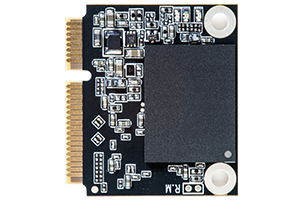

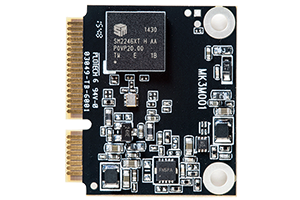

Mini mSATA EB31

Mini mSATA EB31 is an ultra-compact half-size mSATA SATA III 6Gb/s StrongMLC flash module. It is designed as a space-constraint and low power SSD to spinning hard disk drives in embedded applications.

FEATURES

  • SATA III, compliant with JEDEC MO-300B
  • StrongMLC, DRAM-less, up to 32GB capacity
  • Commercial/extended/wide temp. solutions
  • Built-in ECC and OCP/OVP
  • NCQ/TRIM/SMART support
  • mSMART storage device monitoring
Interface SATA III
Form Factor Mini mSATA (MO300B)
Flash Type StrongMLC
Max. Channel 2
Density 8GB~32GB
Sequential R/W (MB/sec, max.) 354/154
Operating Temperature 0°C~+70°C/-25°C~+85°C/-40°C~+85°C
Max. Power Consumption 1.1W (3.3Vx320mA)
Dimensions (LxWxH/mm) 26.8x29.85x3.5
Operating Voltage 3.3V±5%
Storage Temperature -55°C~+95°C
External DRAM Buffer N/A
Thermal Sensor ✓
DEVSLP Mode <5mW
ATA Security ✓
S.M.A.R.T. ✓
TRIM ✓
Vibration 20G (7~2K Hz)
Shock Resistance 1500G@0.5ms
MTBF >3 million hours
