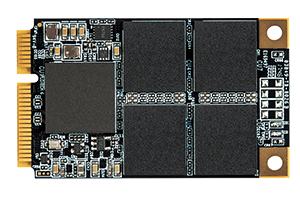

mSATA E231

mSATA E231是SATA III 6Gb/s MLC eMMC 閃存模組。此系列產品可協助快速開機並提供絕佳的讀取效能，提升儲存應用的效率與穩定度。

產品特性

  • SATA III，符合JEDEC MO-300A規格
  • MLC eMMC，容量可達1TB
  • 包含類寬溫與工規寬溫產品
  • 內建ECC錯誤校正與過電流/過電壓保護
  • 支援NCQ/TRIM/SMART
  • mSMART 儲存裝置智慧監控
Interface SATA III
Form Factor mSATA (MO300A)
Flash Type MLC eMMC　
Max. Channel 8
Density 512GB~1TB
Sequential R/W (MB/sec, max.) 532/407
Operating Temperature -25°C~+85°C/-40°C~+85°C
Max. Power Consumption 3.63W (3.3Vx1100mA)
Dimensions (LxWxH/mm) 50.8x29.85x3.75
Operating Voltage 3.3V±5%
Storage Temperature -55°C~+95°C
External DRAM Buffer N/A
Thermal Sensor ✓
DEVSLP Mode N/A
ATA Security ✓
S.M.A.R.T. ✓
TRIM ✓
Vibration 20G (7~2K Hz)
Shock Resistance 1500G@0.5ms
MTBF >3 million hours
