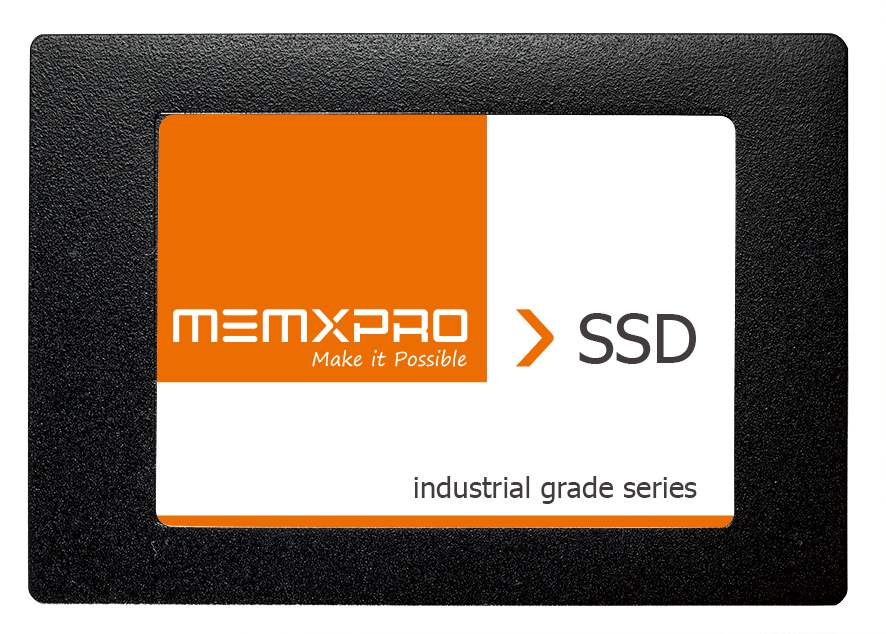

2.5" SSD PM31

2.5" SSD PM31 is a SATA III 6Gb/s MLC solid state drive with high IOPS and enhanced performance. 2.5" SSD PM31 offers outstanding performance and proven reliabilitym making it ideal for factory and machine automation, server, medical, gaming, retail, industrial and embedded applications.

FEATURES

  • Industrial SATA III 2.5" SSD
  • High IOPS and superior performance
  • MLC, up to 512GB capacity
  • Commercial/extended/wide temp. solutions
  • Built-in ECC and OCP/OVP
  • NCQ/TRIM/SMART support
  • mSMART storage device monitoring
Interface SATA III
Form Factor 2.5" SSD (SFF-8201)
Flash Type MLC
Max. Channel 4
Density 64GB~512GB
Sequential R/W (MB/sec, max.) 545/453
Operating Temperature 0°C~+70°C/-25°C~+85°C/-40°C~+85°C
Max. Power Consumption 6W (5Vx1.2A)
Dimension (LxWxH/mm) 100x69.85x6.9
Operating Voltage 5V±5%
Storage Temperature -55°C~+95°C
External DRAM Buffer ✓
Thermal Sensor ✓
DEVSLP Mode <5mW
ATA Security ✓
S.M.A.R.T. ✓
TRIM ✓
Vibration 20G (7~2KHz)
Shock Resistance 1500G@0.5ms
MTBF >3 million hours
