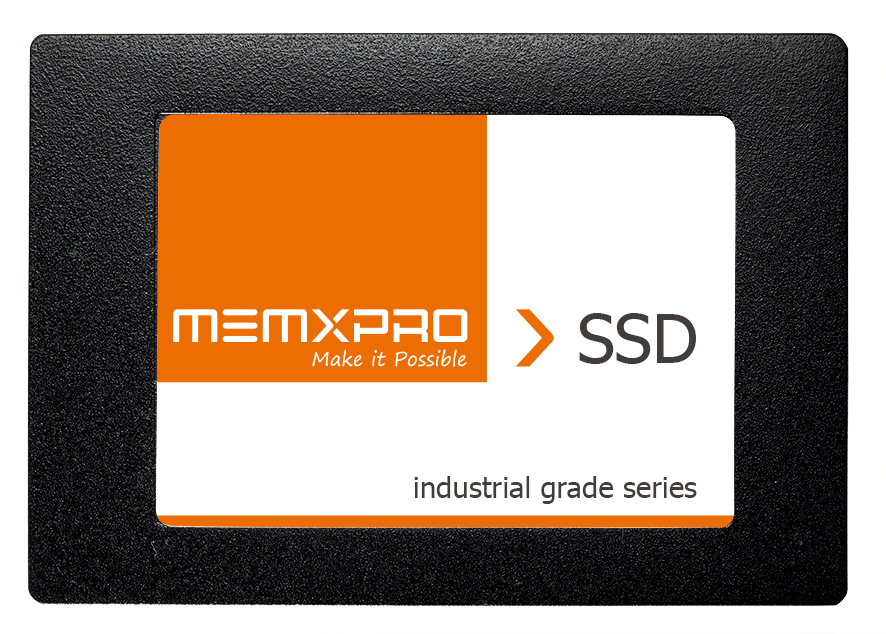

2.5" SSD RB31 (Power Plus)

2.5" SSD RB31 (Power Plus) is SATA III 6Gb/s StrongMLC solid state drive with Power Plus technology. MemxPro Power Plus with firmware control and POSCAP design prevents data loss from unexpected power failure events. The 2.5" SSD RB31 is ideal for applications requiring higher levels of endurance for in-vehicle, transportation, and mission-critical demands.

FEATURES

  • Industrial SATA III 2.5" SSD
  • Power Plus for data protection
  • StrongMLC mode, up to 256GB capacity
  • Commercial/extended/wide temp. solutions
  • Built-in ECC and OCP/OVP
  • NCQ/TRIM/SMART support
  • mSMART storage device monitoring
Interface SATA III
Form Factor 2.5" SSD (SFF-8201)
Flash Type StrongMLC
Max. Channel 4
Density 8GB~256GB
Sequential R/W (MB/sec, max.) 552/439
Operating Temperature 0°C~+70°C/-25°C~+85°C/-40°C~+85°C
Max. Power Consumption 6W (5Vx1.2A)
Dimension (LxWxH/mm) 100x69.85x9.3
Operating Voltage 5V±5%
Storage Temperature -55°C~+95°C
External DRAM Buffer V
Thermal Sensor V
DEVSLP Mode N/A
ATA Security V
S.M.A.R.T. V
TRIM V
Vibration 20G (7~2KHz)
Shock Resistance 1500G@0.5ms
MTBF >3 million hours
