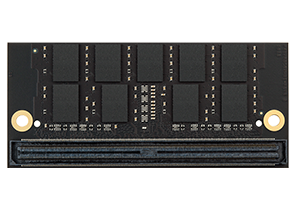

DDR4 XRDIMM
FEATURES
- Data rates in 2133/2400/2666 MT/s.
- JEDEC standard 1.2V±0.06V power supply.
- Plated with 30µ" gold finger.
- ECC function support and built-in thermal sensor.
- Available in standard, extended, and industrial grade temperature ranges.
- Lead-free, RoHS compliant.
| DIMM Type | XRDIMM |
| Data Rate / Frequency | 2133/2400/2666 MT/s |
| Density | 4GB/8GB/16GB/32GB |
| Voltage | 1.2V |
| Pin count | 300pin |
| Width | 64-Bit/72-Bit |
| PCB Height | 37.30mm |
| Operating Temperature | 0°C~+85°C/-25°C~+85°C/-40°C~+85°C |
| Vibration | 20G (7~2KHz) |
| Shock Resistance | 1500G@0.5ms |
