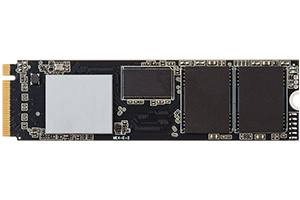

M.2 2280 PCIe PT33

M.2 2280 PCIe PT33 is a PCI-Express flash module with 3D TLC. Taking advantage of high-speed PCI-Express 3.0 x4 32Gb/s interface and up to 10K endurance, M.2 2280 PCIe PT33 greatly enhances computing performance and responsiveness on application launch speed and file loading time for server and time-critical AI and IoT applications. In a small M.2 2280 form factor, M.2 PCIe is ideal to operate with space constraints for host computing systems.

FEATURES

  • PCIe Gen3x4 M.2 2280 with NVMe 1.3 supported
  • Read/Write speeds of up to 2116/1340MB/s
  • Random Performance of up to 188K/211K IOPS
  • Industrial Micron 3D TLC, up to 10K P/E Cycles
  • LDPC ECC for improved data integrity
  • End-to-end data path protection with CRC parity, better safe and data guard features
  • Featuring HMB (Host Memory Buffer), SLC caching and dynamic write acceleration
  • Built-in OCP/OVP Protection
  • 30u” thickness Gold finger
Interface PCIe Gen 3 X4
Form Factor M.2 PCIe (2280)
Controller SMI SM2263EN
Flash Type 3D TLC (Original Micron B17, 10K P/E cycle)
Max. Channel 4
Density 128GB~2TB
Sequential R/W (MB/sec, max.) 2116/1340
Operating Temperature 0°C~+70°C/-25°C~+85°C/-40°C~+85°C
Max. Power Consumption 4.9W (3.3Vx1500mA)
Dimension (LxWxH/mm) 80x22x3.5
Operating Voltage 3.3V±5%
Storage Temperature -55°C~+95°C
Security ✓(AES 128/256 Encryption)
✓TCG Opal 2.0 compliant
✓Built-in H/W SHA256 and TRNG
External DRAM Buffer ✓
Thermal Sensor ✓
NVMe 1.3 ✓
Vibration 20G (7~2KHz)
Shock Resistance 1500G@0.5ms
MTBF >3 million hours
